Drill Rigs

Whatever your goal, our Products are designed to perform.

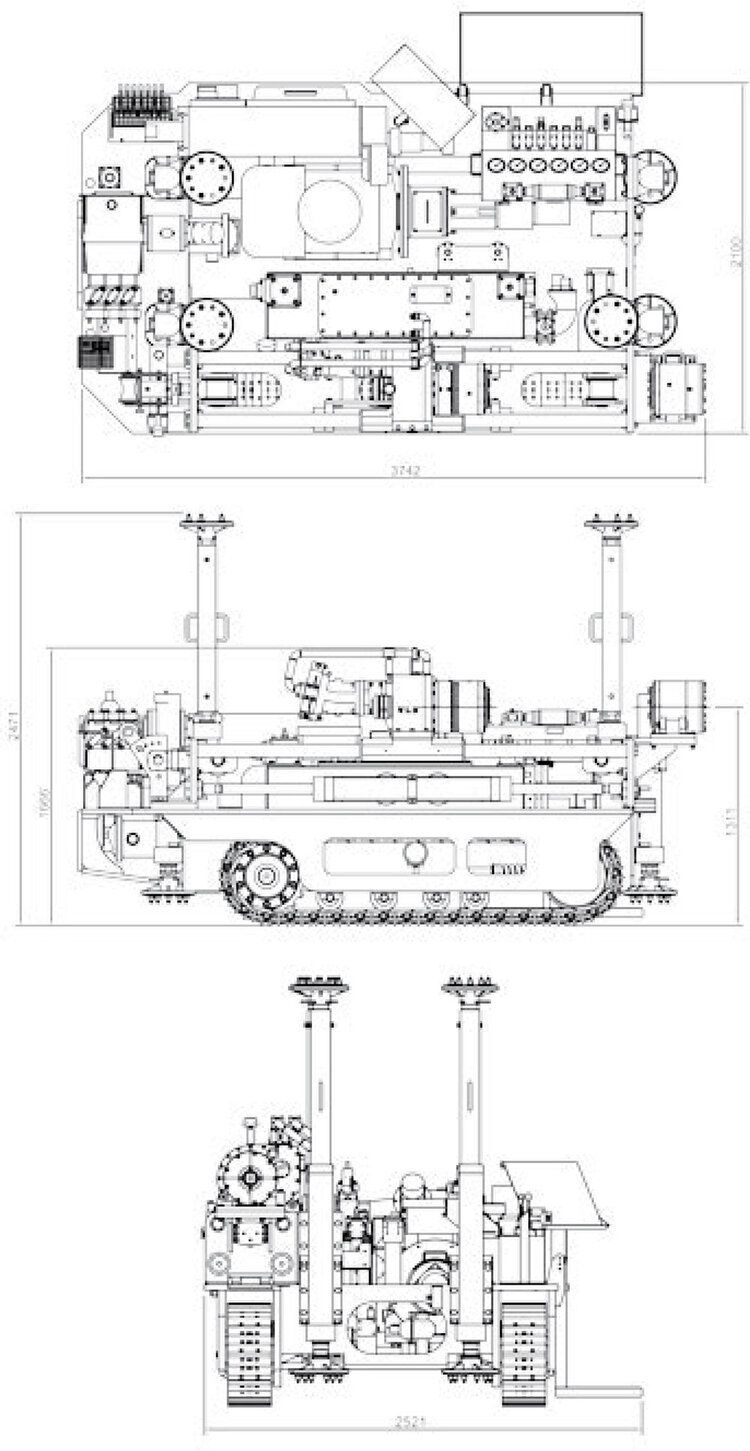

  • DPI 1000

    The DPI 1000 Drill rig is specifically designed to operate in explosive underground environments in directional in-seam drilling applications.


    When combined with DPI’s DDMS (Directional Drilling Management System), the system has the ability to track, guide and complete the most challenging requirements.


    The DPI 1000 is ATEX certified and 100+ units are used around the world, including Australia, China, Russia, Ukraine, Poland, US, Mexico and South Africa.


    The drill has a compact footprint mounted on tracks, a 1-piece integrated drilling unit and power pack.  It is also available in optional modular format.


    The DPI 1000 is designed to drill in-seam in excess of 1500m (CHD series RCS rods).


    Drill Dimensions

    • Overall Width 2053mm (80.8 In)
    • Overall Length 4000mm (157.5 In)
    • Total Height 1165mm (45.9 In)
    • Weight 12,500kg (27,558 Lb)
    • Working Height In Seam 2-5m (6.5 – 16.4 Ft)

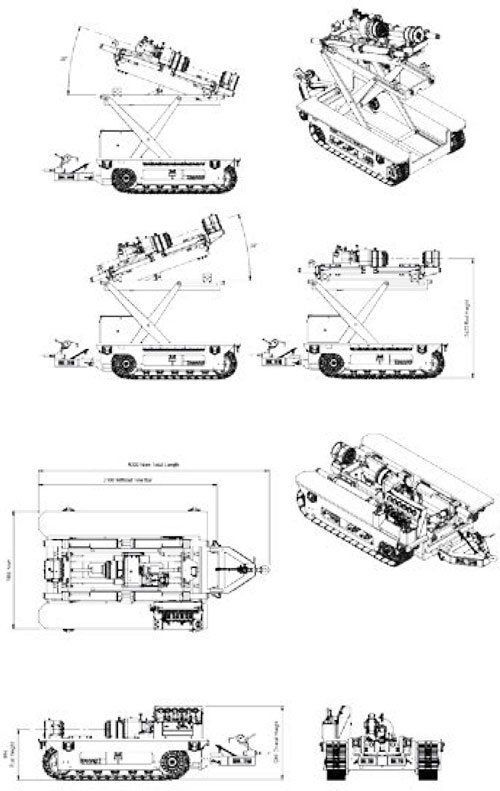

  • DPI 1000R

    The DPI1000R rotary drill rig is specifically designed for complex rotary drilling programs in explosive underground environments.


    The rig is exceptionally flexible in setup with horizontal pinning in position, drilling heights of 930 - 2,450 mm and a feed-frame tilt angle of +/-20 degrees.


    The low profile and flexible drilling heights is achieved by utilizing a remote power pack spaced up to 15m from the DPI1000R drill.


    Drill Dimensions


    • Overall Width 1730 Mm (68.1 In)
    • Overall Length 3360 Mm (132 In)
    • Total Height 1730 Mm (68.1 In)
    • Power Pack Dimensions
    • Overall Width 2320 Mm (91.3 In)
    • Overall Length 3770 Mm (148 In)
    • Total Height 2020 Mm (79.5 In)

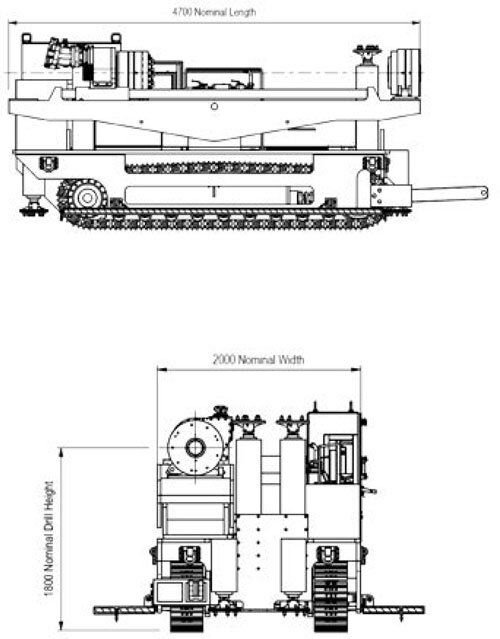

  • DPI 2000

    The DPI 2000 drill rig is specifically designed to drill especially long directional drilling programs in explosive underground environments.


    When combined with DPI’s DDMS (Directional Drilling Management System), the system has the ability to track, guide and complete the most challenging requirements.


    The DPI 2000 is MSHA certified and currently operating in the United States regularly drilling horizontal direction holes in excess of 7000ft.


    The drill has a compact footprint mounted on tracks, a 1-piece integrated drilling unit combined with a feed frame that tilts +/- 10 deg and features 556kN push / pull.  The system is completed by a rotation unit with a torque capability of 7457Nm.


    Drill Dimensions


    • Overall Width 2000 Mm (78.7 In)
    • Overall Length 4700mm (185 In)
    • Total Height 2300 Mm (90.6 In)
    • Weight 24,850 Kg (54,785 Lb)
    • Working Height In Seam 3.3 – 5 M (10.8 – 16.4 Ft)
